Steel Shot Sand Blasting Media

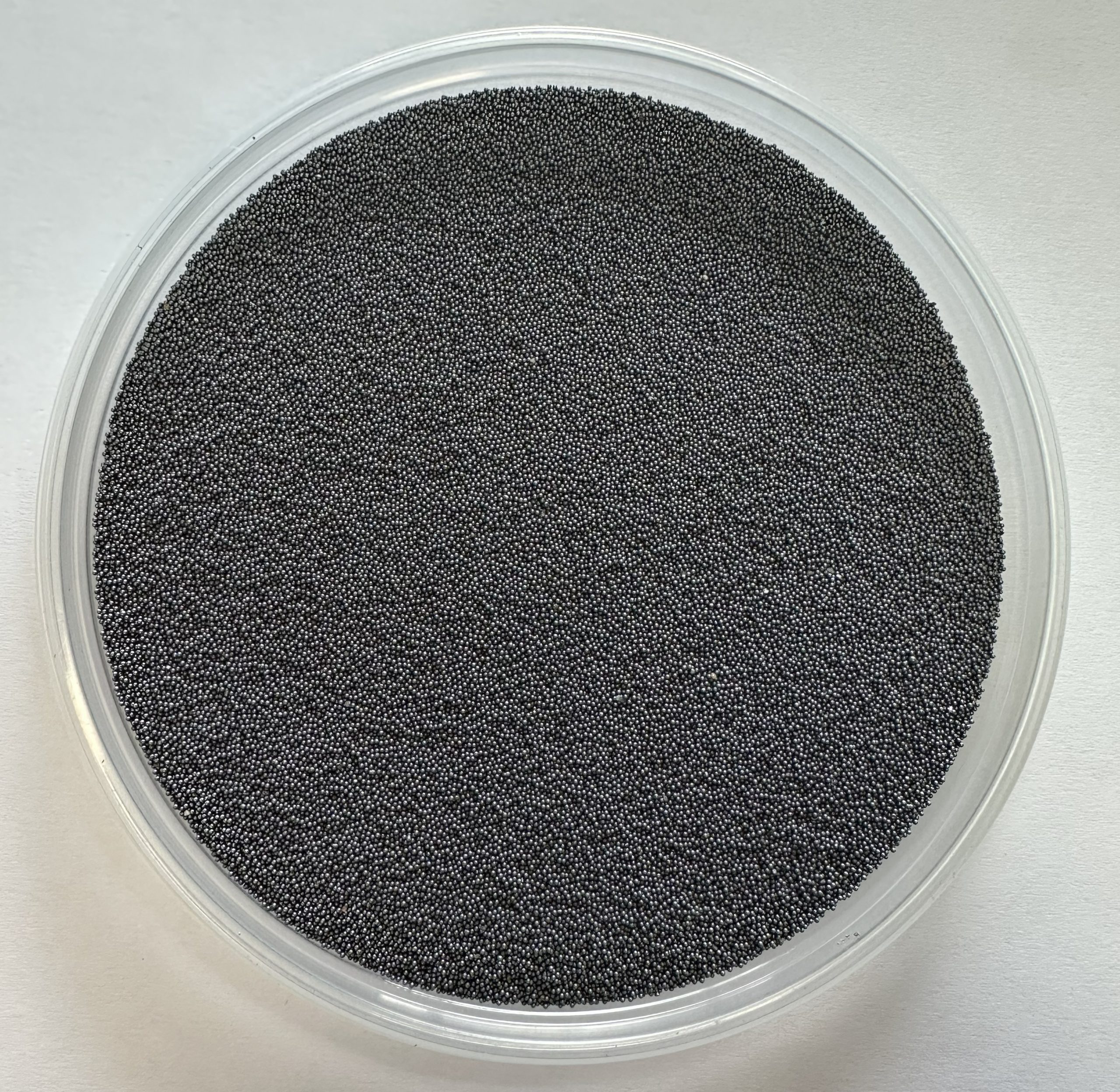

Picture 3.6.1.1 - 20

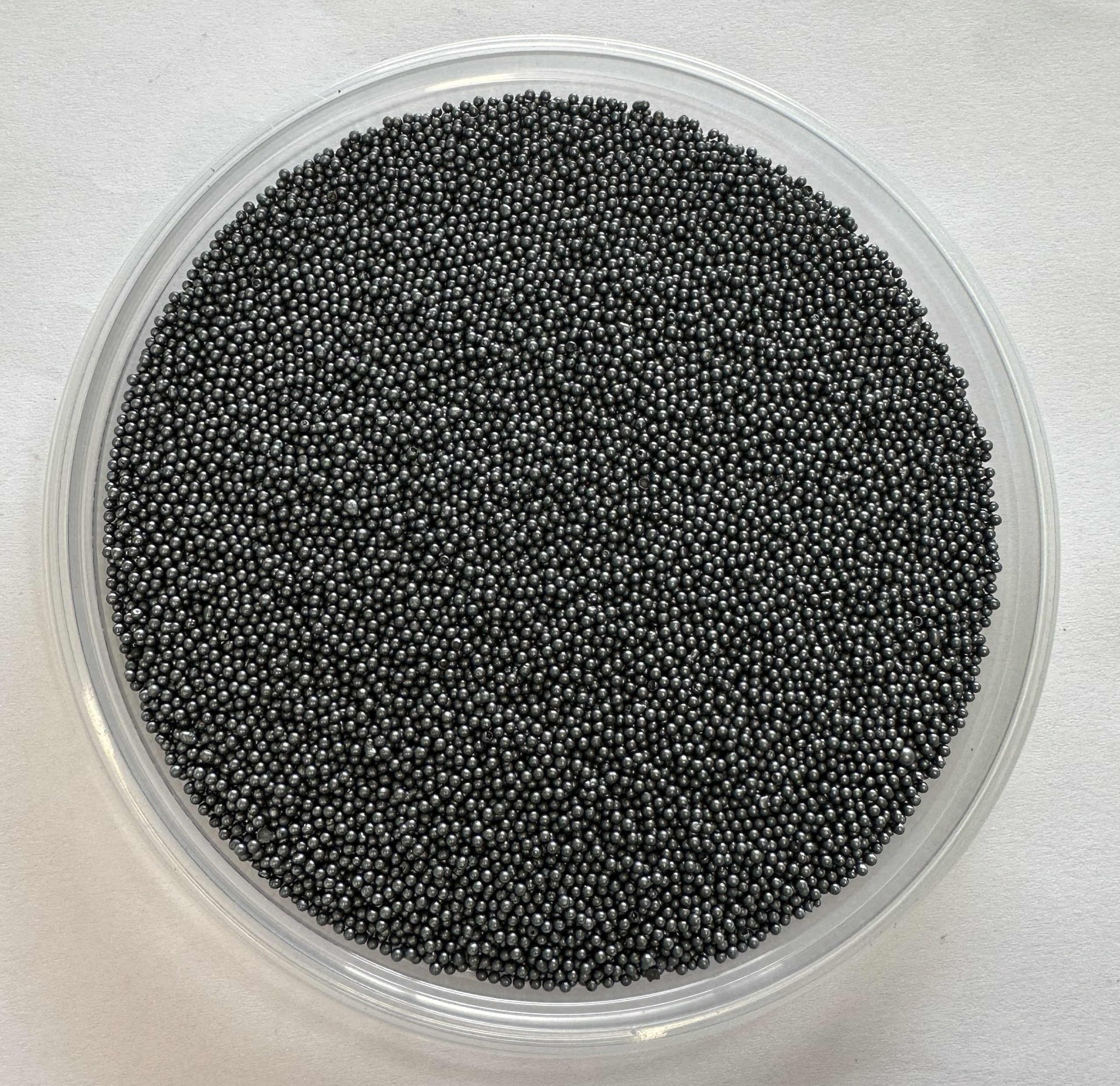

Picture 3.6.1.1 - 21
Picture 3.6.1.1 - 22

General chemical composition:

Carbon0.80 – 1.20 %
Silicon0.40 – 1.50 %
ManganS070 – S110 0.35 – 1.20%
S170 0.50 – 1.20%
S230 – S660 0.60 – 1.20%

Physical properties:

MicrostructureUniform martensite tempered to a degree consistent with the hardness range.
Hardness41 – 51 HRC. Other hardnesses available upon request.
DensityThe specific density of cast steel shot shall not be less than 7.0 gm/cc.

Steel Shot is widely to clean metal surface, especially by shot blasting machine (wheel). Steel Shot provides a greater penetration effect because of the smaller point of contact.

Grain size comparison

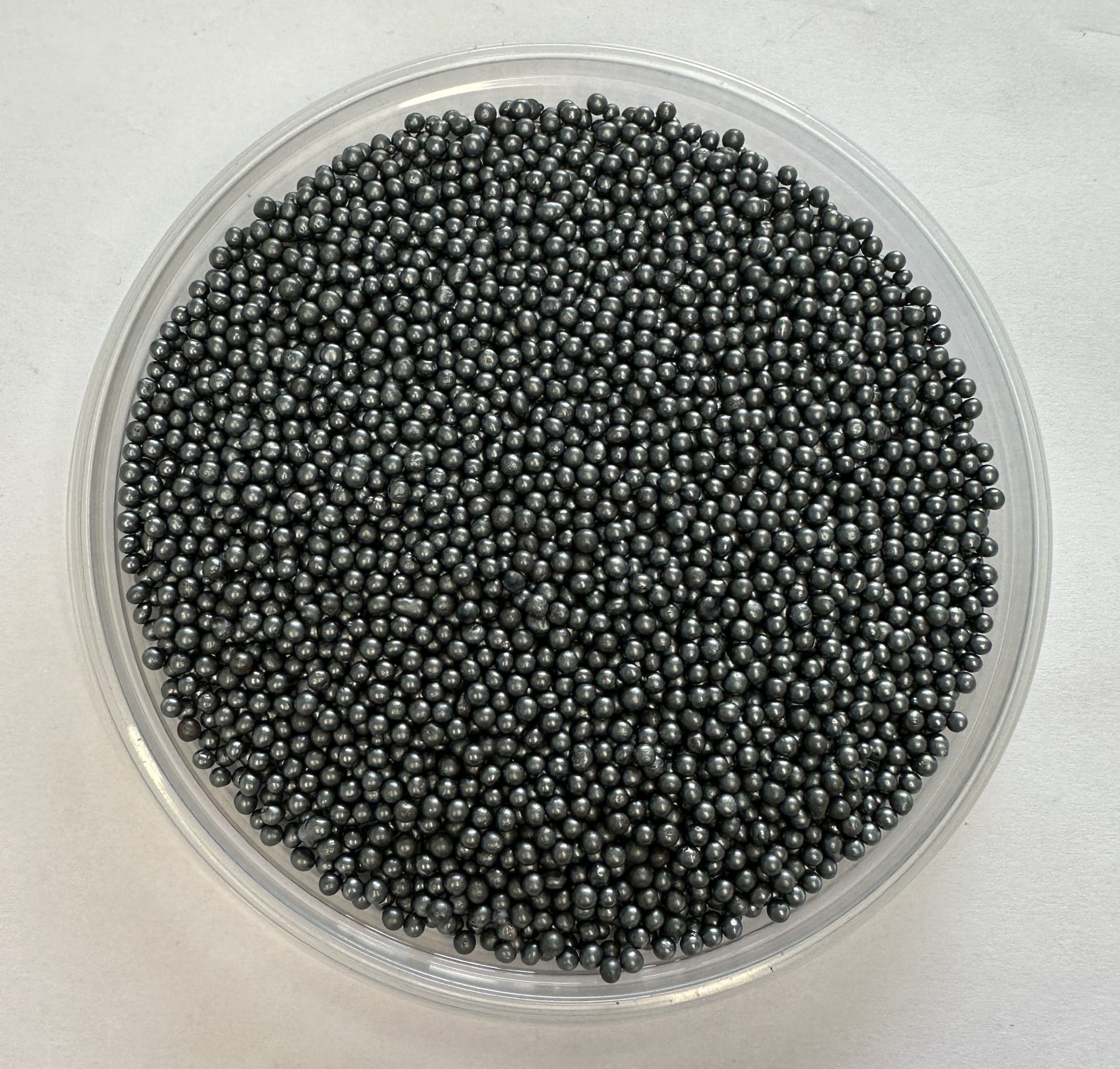

S-780/SH-240 Size 2.4mm
S-780/SH-240 Size 2.4mm

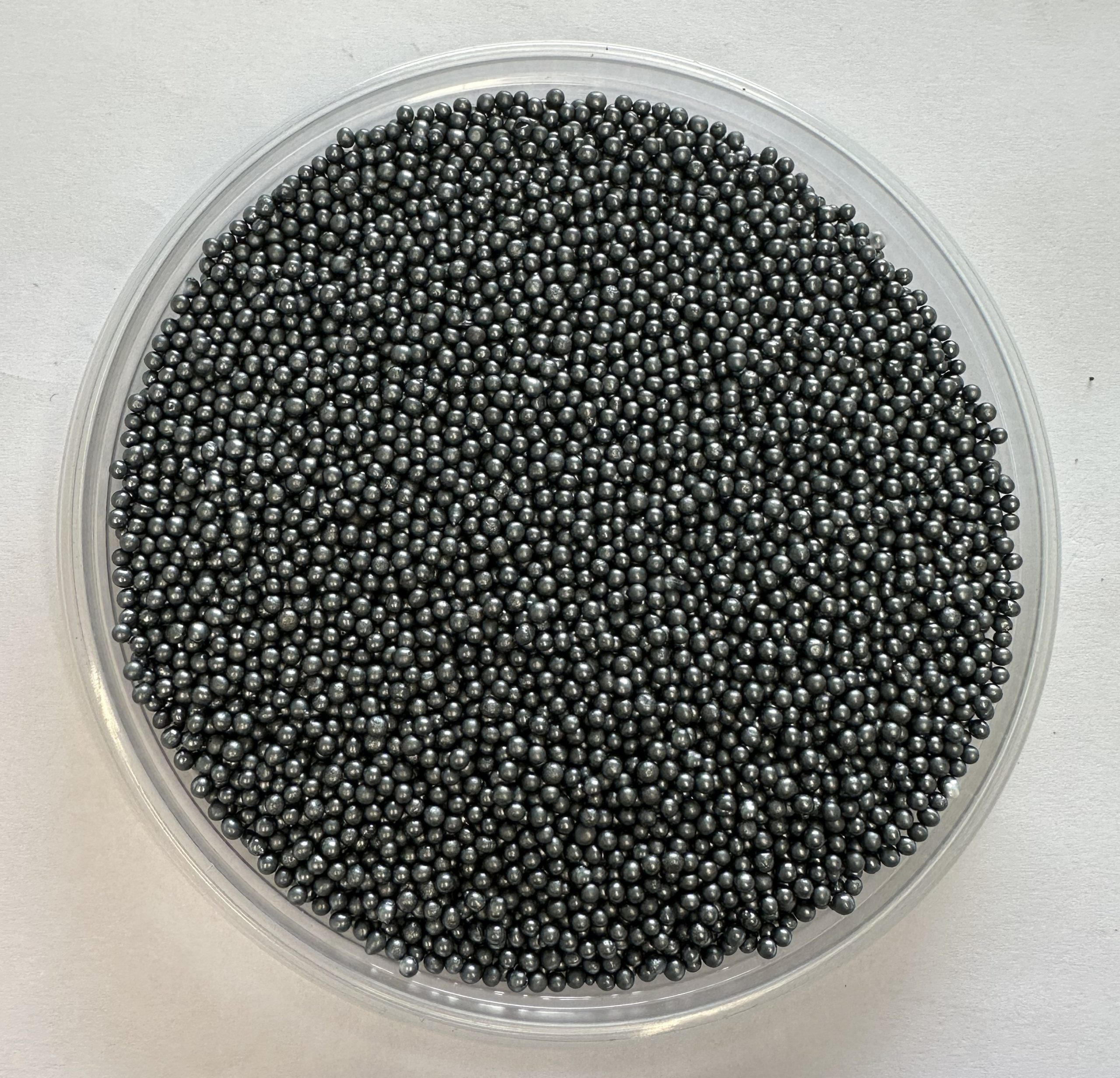

S-660/SH-200 Size 2.0mm
S-660/SH-200 Size 2.0mm

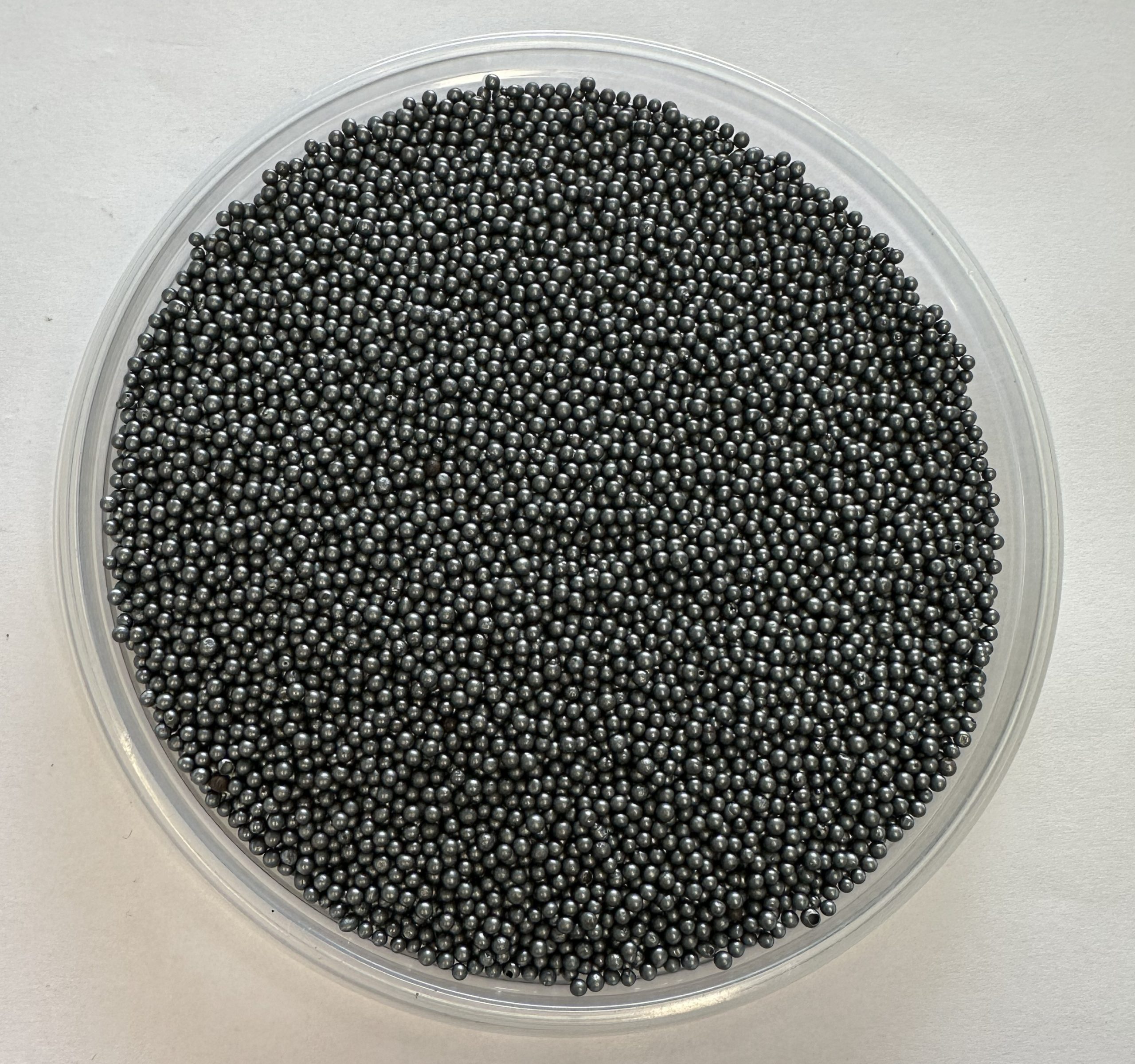

S-550/SH-170 Size 1.70mm
S-550/SH-170 Size 1.70mm

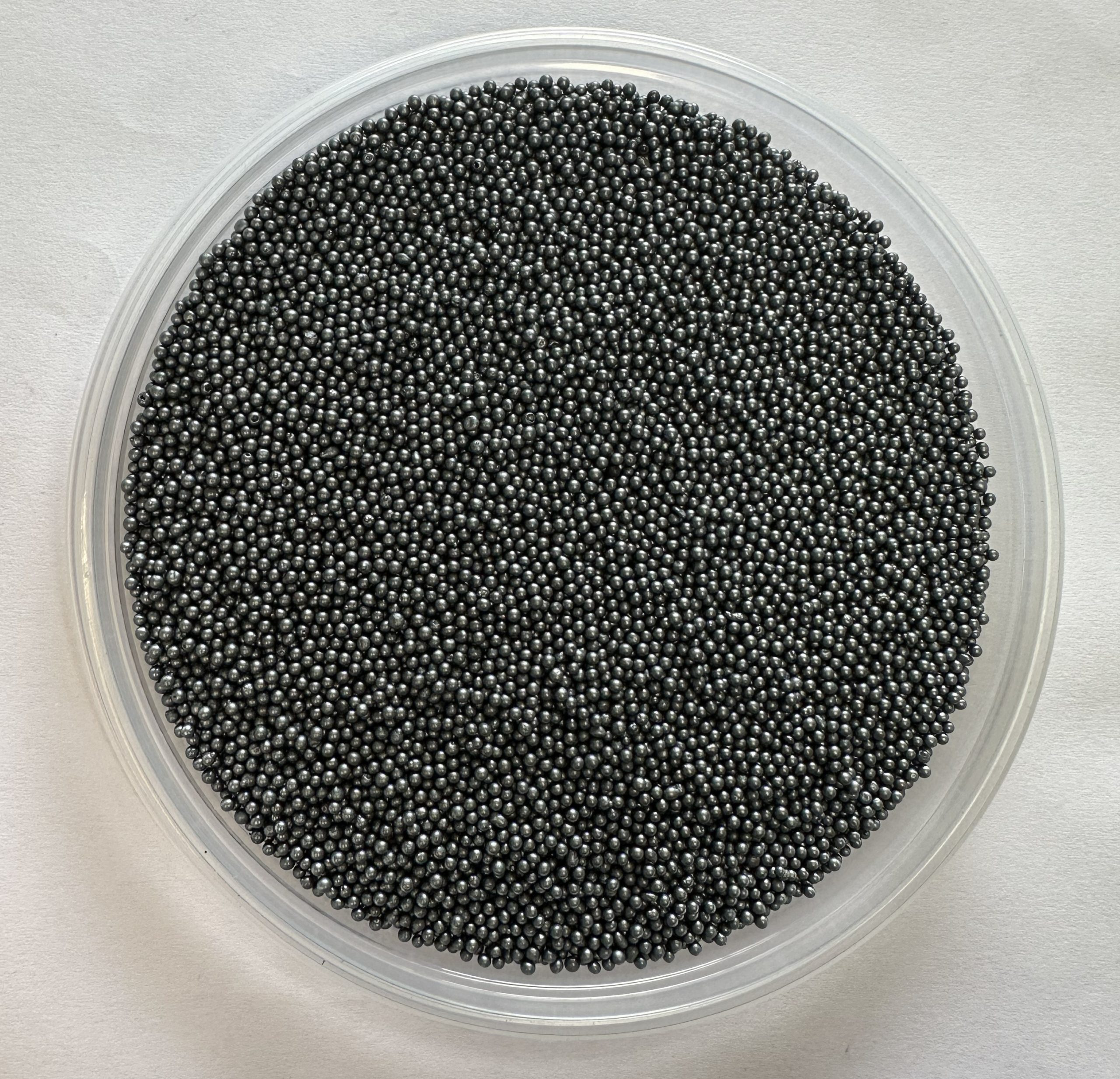

S-460/SH-140 Size 1.40mm
S-460/SH-140 Size 1.40mm
S-390/SH-120 Size 1.20mm
S-390/SH-120 Size 1.20mm

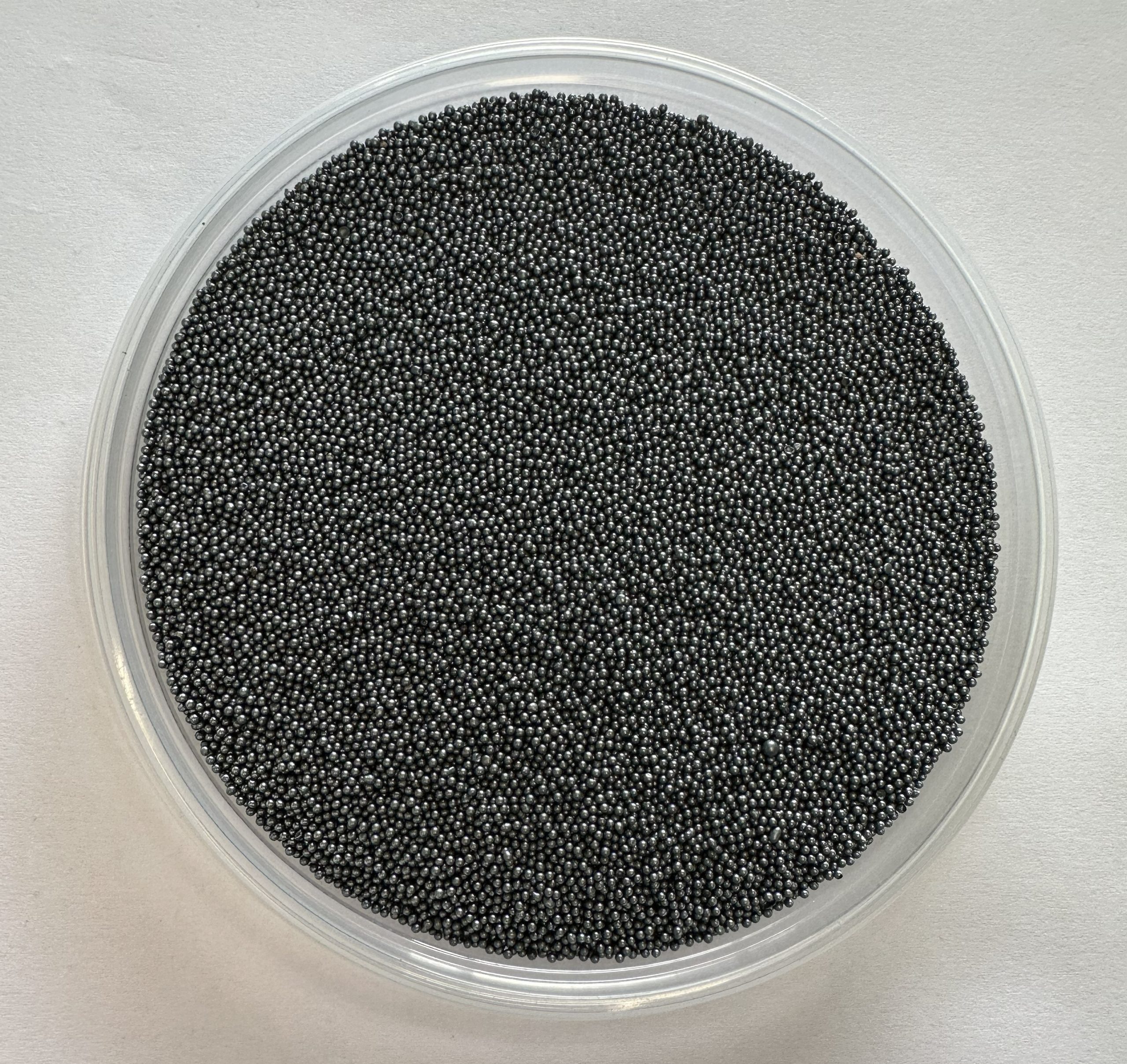

S-330/SH-100 Size 1.00mm
S-330/SH-100 Size 1.00mm

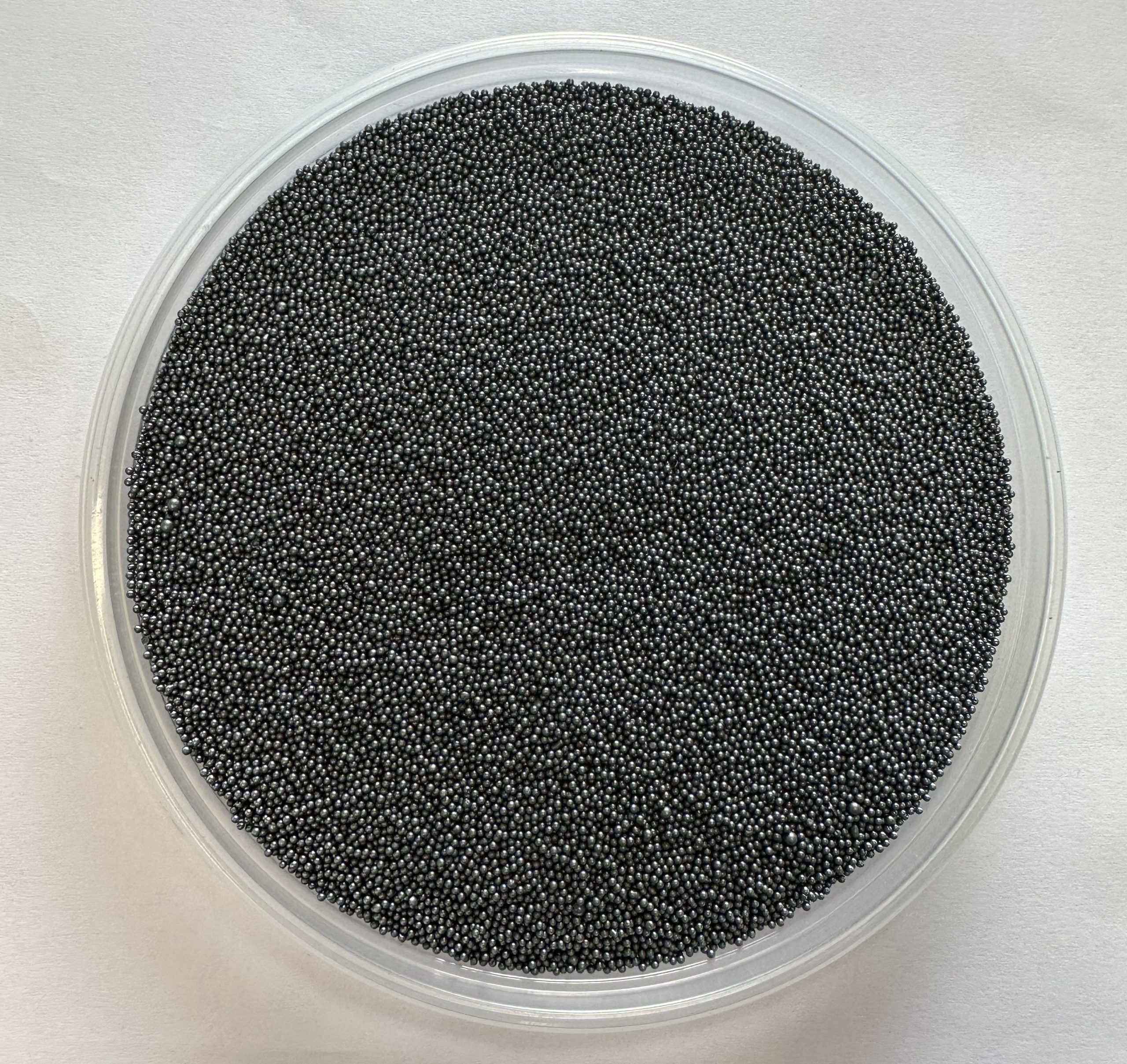

S-280/SH-80 Size 0.80mm
S-280/SH-80 Size 0.80mm

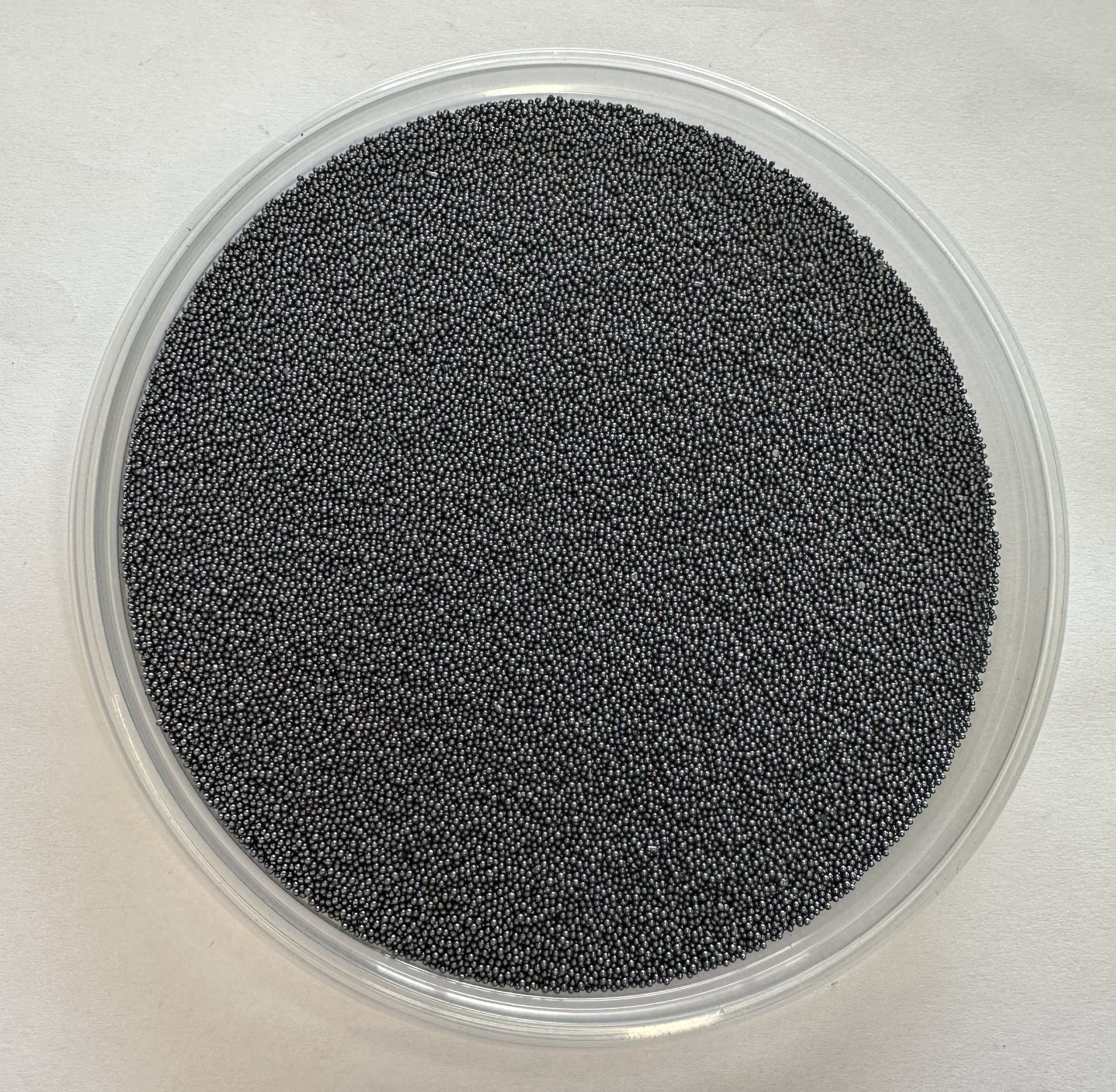

S-230/SH-70 Size 0.70mm
S-230/SH-70 Size 0.70mm

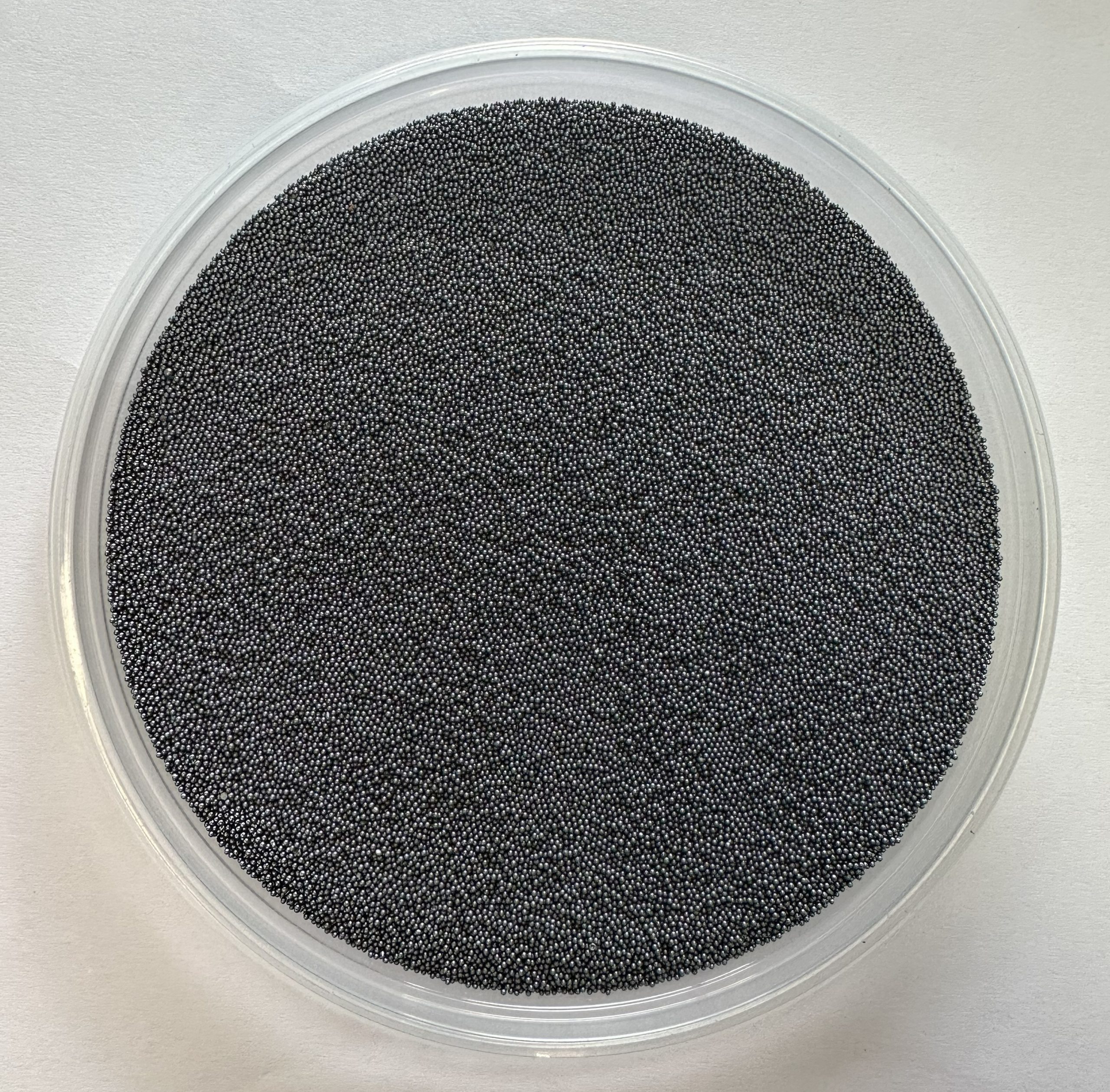

S-170/SH-40 Size 0.60mm
S-170/SH-40 Size 0.60mm
S-110/SH-30 Size 0.40mm
S-110/SH-30 Size 0.40mm
Brown Alumunium Oxide White Alumunium Oxide Silicon Carbide (Black)
Garnet Glass Beads Walnut Shell
Green Silicon Carbide Monocrystal (Single) Fused Alumina Product White Alumunium Oxide (Grit)
Yttrium Stabilized Zirconia Beads Zirconium Silicate Beads

For further information, you can contact our Sales Engineer, or you can contact us directly or here.
