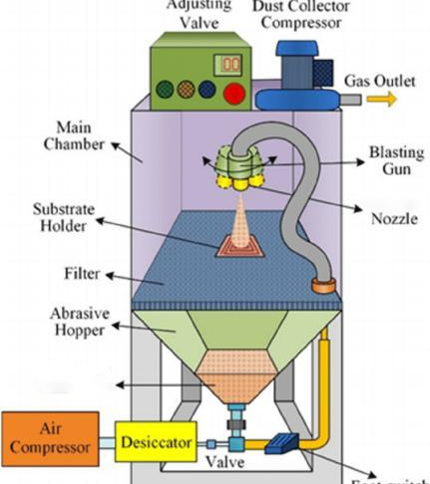

Abrasive Loading: Abrasive materials are loaded into the hopper.
Compressed Air Supply: Compressed air, typically at 70-120 PSI, powers the system.
Spray Gun Operation: The operator uses a spray gun inside the cabinet, manipulating it through glove ports.
Surface Treatment: The high-speed abrasive cleans or polishes the workpiece.
Abrasive Recovery: Used abrasives are collected for potential reuse.
Dust Collection: A system captures dust and fine particles to maintain cleanliness and visibility.
| Model | Working Dimensions(mm) | Overall Dimensions (mm) | Opening Size (mm) | Loading Weight (kg) |
| SBC-6050 | 600 x 500 x 650 | 600 x 930 x 1540 | 320 x 550 | 100 |
| SBC-9060D | 900 x 600 x 650 | 900 x 1020 x 1670 | 380 x 650 | 100 |
| SBC-9070D | 900 x 700 x 650 | 900 x 1170 x 1670 | 480 x 650 | 100 |
| SBC-9080D | 900 x 800 x 650 | 900 x 1220 x 1670 | 580 x 650 | 100 |
| SBC-1010D | 1000 x 1000 x 780 | 1000 x 1400 x 1680 | 780 x 650 | 120 |
| SBC-1212D | 1200 x 1200 x 850 | 1200 x 1620 x 1800 | 1000 x 1000 | 130 |
| SBC-1515D | 1500 x 1500 x 800 | 1500* x 1920 x 1800 | 1200 x 1200 | 150 |
| Accept Customized Size | ||||
Options:
Manual Sandblasting Normal Pressure

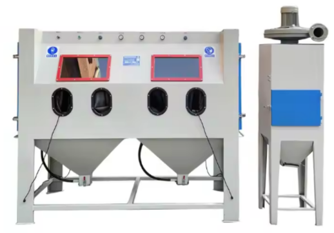

Double Station Type (Options: Normal Pressure & High Pressure)

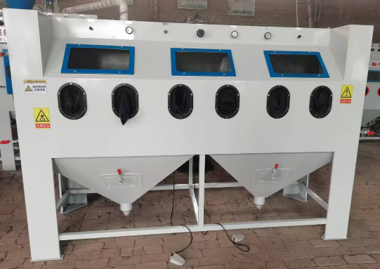

Three Station Type (Options: Normal Pressure & High Pressure)
Manual Sandblasting High Pressure
Turntable Type (Options: Normal Pressure & High Pressure)

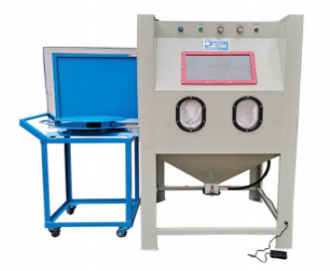

Trolley turntable Type (Options: Normal Pressure & High Pressure)
Drum type (Options: Normal Pressure & High Pressure)
| Dry Sandblasting Cabinet | Wet Sand Blasting Cabinet |
Please see our Sandblasting media:
For further information, you can contact our Sales Engineer, or you can contact us directly or here.
