Standard Core Shooter

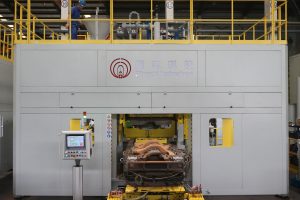

1. MAs Series Core Shooter
Key Features
- Primarily for manual operation, flexible to the requirements of core making production
- Applies to various processes including cold box /hot box process, and for horizontal and/or vertical parted core box, up to 6 parts
- Fixed-shooting barrel structure without detachable sand-shooting barrel reduces cleaning and spare parts requirements
- Special technologies of floating mold closure and regulated sand shooting allows better core quality and reduces core box abrasion
- Multistage denoise technologies for reduced production noise
- High efficiency curing technology is employed to improve production efficiency and save energy
- Available with the Mingzhi intelligent core making control system (MiCL) for convenient operation and intelligent management

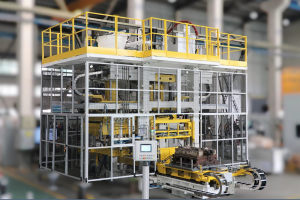

2. MDs Series Core Shooter
Key Features
- Primarily for high efficiency and automatic core making production, satisfying the utmost requirements for various types of production
- Applies to various processes including cold box/hot box/inorganic
- process, and for horizontal and/or vertical parted core box, up to 6 parts
- Moveable sand-shooting barrel aligns with the top press sand-shooting and gassing structure for improved equipment operation efficiency
- Available with upper-core box flip function, which allows online core box maintenance
- Special technologies of floating mold closure and regulated sand shooting allows better core quality and reduces core box abrasion
- Multistage denoise technologies for reduced production noise
- High efficiency curing technology is employed to improve production efficiency and save energy
- Configured using the Mingzhi intelligent core making control system (MiCL) for convenient operation and intelligent management
Non-standard Core Shooter

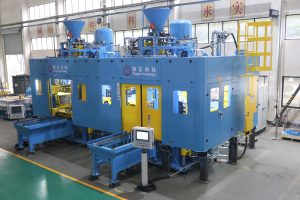

1. Core Shooter for Vertical Parted Core Box
Key Features
- Vertical shooting, flexible nozzle arrangement, reduce nozzle
- quantity, improve the surface quality of cores
- Four guide rod clamping mechanism, precise clamping of dynamic, pressurized locking of core box, improve core size stability
- Adopting core box tilting technology and equip with core picking device, easy for taking cores by robot and improve production efficiency
- Integrated heater and blowing head, precise quantification of catalyst, achieving energy-saving production
- Equipped with up and down core pulling functions, meet the requirements of core emptying process and reduce tooling investment
2. Hot Box Core Shooter
Key Features
- Fully automated core making, automatic mold locking, and
- optional automatic core taking
- Multi-model product library to meet the vertical parting (including bottom core pulling), horizontal 2/3/4 parting and other hot core box adaptation production.
- Small and medium-sized models, manufactured using full electric drive or multi station specialized machines to achieve efficient production
- Equipped with closed safety enclosure, the smoke and exhaust gases are centrally extracted and discharged, meet the requirements of environmental protection production
- Adopting PID control technology to achieve stable and precise control of core box electric heating, saving electricity and energy
Inorganic Core Shooter

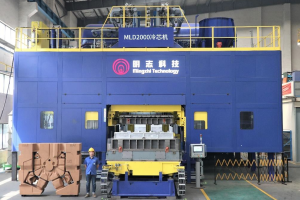

Giga Cold Box Core Shooter
